SGM63600AT

SGM63600AT

Up to 60V Input, Current Mode Synchronous Buck Controller, REPLACE MP9928

產品特性
SGM63600  GENERAL DESCRIPTION

The SGM63600 is a 4.3V to 60V current mode controller for synchronous Buck converters. It is capable to efficiently drive two N-MOSFETs over the whole voltage range.

This device uses accurate cycle-by-cycle current limiting in PWM operation. Power-save mode (PSM) is used at light load to keep high efficiency. It can also enter non-synchronous PWM mode if the PSM is enabled.

Switching frequency can be set by an external resistor (RFREQ), or an external clock (SYNC input) for low noise applications. The protection functions include UVLO, thermal shutdown, accurate output over-voltage protection (OVP) and over-current protection (OCP).

The SGM63600 is available in Green TQFN-3×4-20L and TSSOP-20 (Exposed Pad) packages. It can operate in the -40℃ to +125℃ junction temperature range.

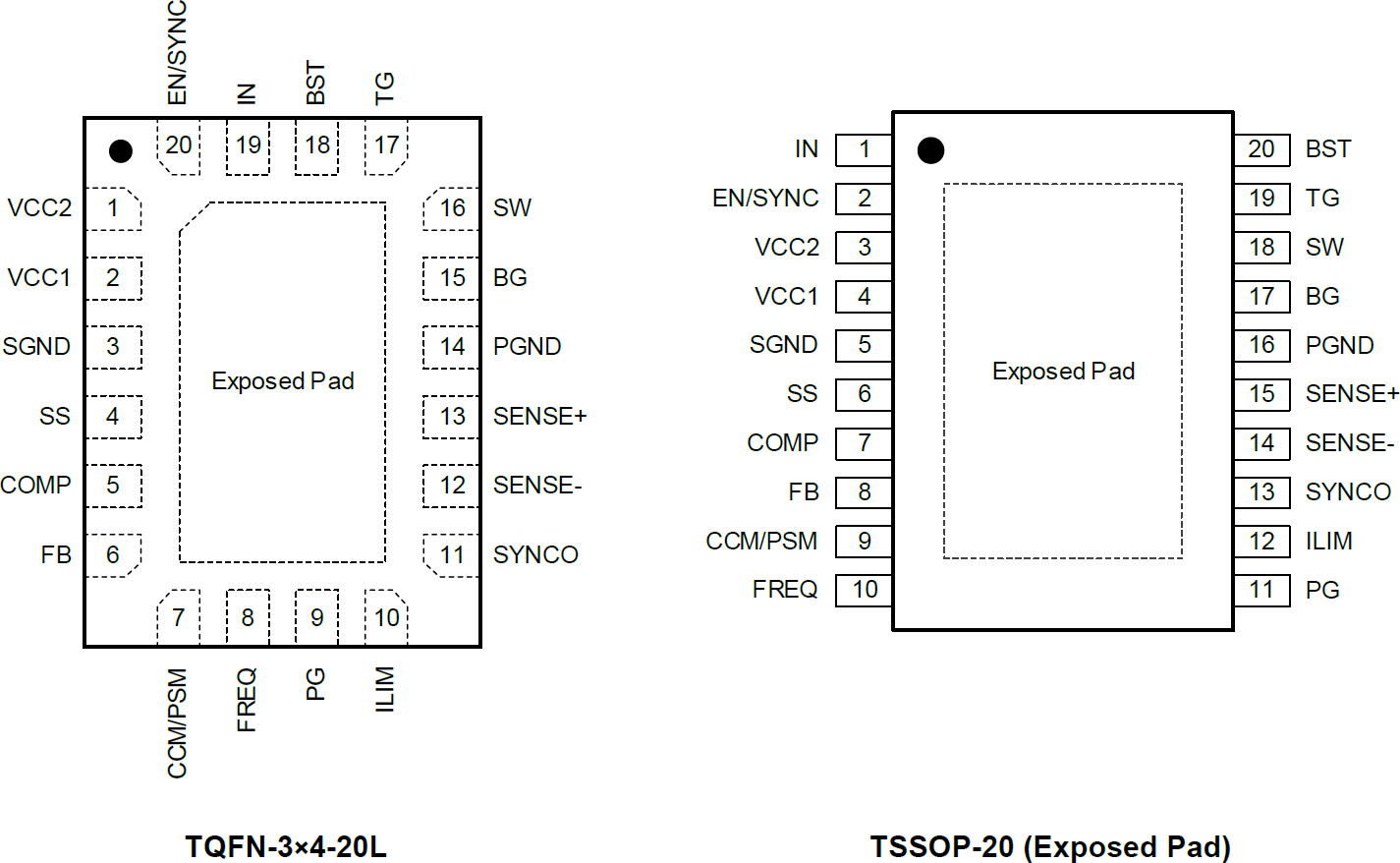

SGOM63600  PIN CONFIGURATIONS,


SGM63600  FEATURES

  • Integrated Dual N-MOSFET Drivers

  • Wide 4.3V to 60V Input Voltage Range

  • 100kHz to 1MHz Adjustable Frequency Range

  • Up to 99% Duty Cycle in Low Dropout Mode

  • Adjustable Cycle-by-Cycle Current Limit

  • Adjustable Soft-Start with Pre-biased Capability

  • Thermal Shutdown

  • Output OVP and OCP Protections

  • Adjustable UVLO Protection through EN Input

  • Hiccup Mode Current Limit

  • Frequency Foldback Short Circuit Protection

  • Synchronous Output (SYNCO) with 180o Phase Shift

  • Power Good (PG) Indicator

  • External Power Supply (VCC2) for Internal LDO

  • PSM Capability for High Light-Load Efficiency

  • Programmable PSM and CCM Operations

  • Available in Green TQFN-3×4-20L and TSSOP-20 (Exposed Pad) Packages

APPLICATIONS

Industrial Power Supplies

General Purpose Wide VIN Power Supplies

USB Dedicated Charging Port

PD Power Supply

SGM63600  PIN TO PIN REPLACE  MP9928

產品應用

工業電源
USB 充電端
PD 電源

規格
型號DataSheetDimension (mm)Description
