TPA1286

High Voltage, Precision, Zero-drift, Instrumentation Amplifier, REPLACE AD8626 INA826

• Qualified for Automotive Applications

  • AEC-Q100 Grade 1, TA: –40°C to +125°C

  • Junction Temperature, TJ: –40°C to +150°C

• Input Voltage Range: 2.75 V to 29 V

• Adjustable Output Voltage from 1.25 V

• 1.5 A Maximum Output Current

• ±2% Output Accuracy Over Line Regulation, Load Regulation, and Operating Temperature Range

• Low Dropout Voltage: 1.2 V Typically at 1.5 A

• High PSRR:

  • 79 dB at 120Hz

  • 76 dB at 1kHz

• Excellent Transient Response

• Stable with a 1 μF to 100 μF Tantalum Output Capacitor

• Integrated Protection:

  • Over-Current Protection

  • Over-Temperature Protection

• Package Options: ESOP8

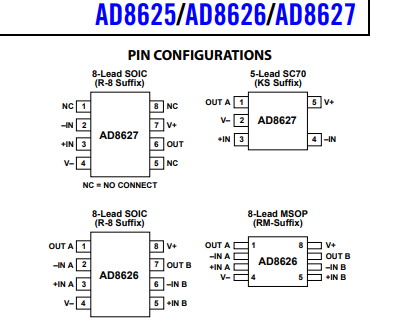

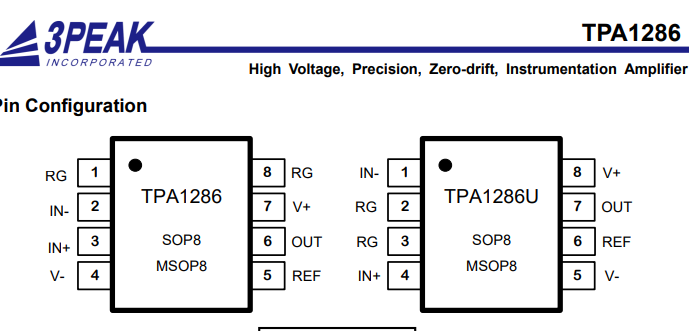

PIN TO PIN REPLACE INA826  AD8626,  兩者的封裝對(duì)比圖如下：

• High Power Linear Power Supplies

• Low Noise Power Supplies

• Microcontroller, FPGA, ASIC Power Supply
